Toothed belts, also known as synchronous belts, are integral components in various mechanical systems, providing precise motion control and power transmission. Their design allows for the transfer of motion without slippage, ensuring synchronization between shafts. This synchronization is crucial in applications ranging from automotive engines to industrial machinery. The diversity in toothed belt types caters to specific needs, making it essential to understand their differences for optimal application. One such specialized type is the double Toothed Belt, which offers unique advantages in certain mechanical setups.
Toothed belts are characterized by their toothed profiles that mesh with corresponding toothed pulleys. This design ensures a positive engagement between the belt and the pulley, eliminating slippage and providing accurate timing in power transmission. The materials used in toothed belts vary, including rubber, polyurethane (PU), and reinforced fibers, each offering different mechanical properties suitable for specific applications.
The evolution of toothed belts dates back to the early 20th century when the need for synchronized drives became apparent in industrial machinery. Initially made from simple rubber composites, advances in material science have led to the development of belts with enhanced strength, durability, and resistance to environmental factors. These improvements have expanded their applications across various industries.
Understanding the different types of toothed belts is crucial for selecting the right belt for a specific application. Below are the main categories of toothed belts:
Timing belts are perhaps the most common type of toothed belts. They are widely used in automotive engines to synchronize the rotation of the crankshaft and camshaft, ensuring that engine valves open and close at the proper times during each cylinder's intake and exhaust strokes. Timing belts come in various profiles and materials, including rubber and polyurethane.
Rubber timing belts are made from high-grade rubber compounds reinforced with fibers like fiberglass or Kevlar. They offer flexibility and strength, suitable for high-speed applications. Rubber belts can withstand temperature variations and are relatively cost-effective, making them a popular choice in automotive and industrial applications.

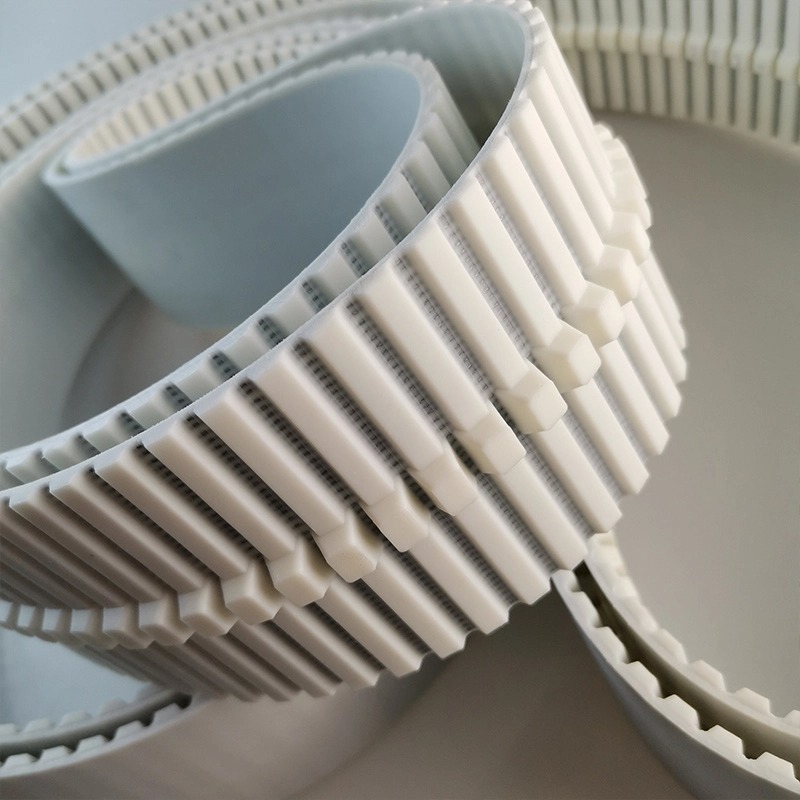

PU timing belts are known for their exceptional abrasion resistance and durability. The polyurethane material provides a higher load capacity and longer service life compared to rubber belts. They are reinforced with steel or Kevlar cords to enhance tensile strength. PU belts are ideal for applications requiring precise positioning and high torque transmission.
HTD belts feature a curvilinear tooth profile, which provides a larger surface area for load distribution. This design reduces stress concentration on the teeth, allowing the belt to handle higher torque levels without premature wear. HTD belts are commonly used in heavy machinery and equipment where significant power transmission is required.
STD belts have a modified curvilinear tooth profile that offers improved load-carrying capacity and reduced backlash. The design enhances engagement between the belt and pulley, making them suitable for precision drives and applications requiring accurate timing. STD belts are often found in robotics, automation systems, and high-precision machinery.
RPP belts utilize a parabolic tooth profile that enhances the distribution of stress and reduces noise during operation. The reinforced design provides high power transmission capacity and efficiency. RPP belts are suitable for applications where quiet operation and high performance are essential, such as in medical equipment and office machinery.
T-toothed belts are characterized by their trapezoidal tooth profile. They are standardized according to DIN specifications and are widely used in applications requiring synchronization. T-toothed belts are available in various pitches, allowing for flexibility in design and application. They are commonly used in packaging machines, printing presses, and textile machinery.
Double toothed belts, also known as dual-sided timing belts, have teeth on both sides of the belt. This configuration allows them to engage with pulleys on both sides, enabling more complex drive systems where rotation needs to be transferred in opposite directions. The double Toothed Belt is essential in applications like printers, conveyors, and other machinery that require synchronization of multiple components.
The selection of a toothed belt type is heavily influenced by its intended application. Below are common applications for each belt type:
In automotive engines, timing belts synchronize the crankshaft and camshaft. Rubber timing belts are traditionally used due to their flexibility and resistance to oil and heat. The precise timing ensures optimal engine performance and efficiency.
Industrial applications often require belts that can handle high loads and torque. HTD and STD belts are preferred in these settings due to their enhanced power transmission capabilities. Machines like CNC equipment, lathes, and milling machines utilize these belts for precise motion control.
Automation systems and robots require belts that provide exact positioning and minimal backlash. PU timing belts and STD belts are commonly used due to their strength and accuracy. The reduced stretch of PU belts ensures consistent performance over time.
Machines in the printing and textile industries require belts that can operate smoothly at high speeds without causing vibrations or noise. T-toothed belts and RPP belts are ideal for these applications, providing quiet operation and reliable performance.
Conveyor systems often use double toothed belts to drive rollers on both sides of the belt, allowing for complex movement patterns. The double Toothed Belt enables the synchronization of multiple components, enhancing the efficiency of material handling systems.
Choosing the appropriate toothed belt involves considering several factors to ensure optimal performance and longevity of the belt and the machinery it operates within.
The amount of torque and load the belt needs to transmit is a critical factor. HTD and STD belts are designed for higher torque applications, while standard timing belts may suffice for lighter loads.
In applications where positioning accuracy is paramount, belts with minimal backlash and stretch, such as PU timing belts, are preferred. The material composition and tooth profile affect the belt's ability to maintain precise synchronization.
Operating environments can significantly impact belt performance. Factors such as temperature, exposure to chemicals, and humidity must be considered. PU belts offer better chemical resistance, while rubber belts perform well under varying temperature conditions.
The speed at which the belt will operate influences the selection. High-speed applications require belts that can handle the centrifugal forces and maintain tooth engagement without excessive wear or noise.
Proper maintenance of toothed belts ensures their longevity and reliable operation. Regular inspection and adherence to maintenance schedules can prevent unexpected failures.
Routine inspections should check for signs of wear, such as fraying, cracking, or tooth deformation. Tension should be measured to ensure it remains within the manufacturer's specified range.
Maintaining the operating environment can prolong belt life. This includes controlling temperature, keeping the area free from debris, and ensuring proper lubrication of adjacent components where necessary.
Manufacturers provide guidelines on the expected service life of belts under specific conditions. Adhering to these guidelines and replacing belts proactively can prevent downtime and damage to machinery.
Continuous research and development have led to significant advancements in toothed belt technology, enhancing their performance and expanding their applications.
The development of new materials like advanced polymers and composite reinforcements has improved the strength, flexibility, and temperature resistance of toothed belts. These materials offer better performance and longer service life.
Innovative manufacturing processes, such as precision molding and additive manufacturing, have allowed for the production of belts with complex tooth profiles and custom designs. This customization enhances performance in specialized applications.
Modern toothed belts are increasingly integrated into smart systems, where sensors monitor belt conditions in real-time. This data-driven approach allows for predictive maintenance, reducing the risk of unexpected failures.
Examining real-world applications of toothed belts provides insight into their practical benefits and considerations in various industries.
A leading automobile manufacturer sought to improve engine efficiency and longevity. By switching from conventional rubber timing belts to PU timing belts with reinforced cords, they achieved better performance and extended maintenance intervals, reducing overall costs.
An industrial robotics company required belts that could provide precise motion control with minimal maintenance. Implementing STD belts allowed for higher accuracy in robot movements, enhancing productivity and product quality.
A logistics company improved its material handling systems by integrating double Toothed Belts into their conveyors. This adjustment allowed simultaneous movement of goods in multiple directions, optimizing space and reducing transfer times.
The future of toothed belts is poised for further innovation, driven by emerging technologies and industry demands.
Environmental considerations are leading to the development of belts made from recyclable or biodegradable materials. These belts aim to reduce the ecological footprint of industrial operations without compromising performance.
Advancements in sensor technology and data analytics enable more sophisticated predictive maintenance models. Real-time monitoring of belt conditions will become standard, allowing for timely interventions and reducing downtime.
As machinery becomes more complex, toothed belts will integrate with advanced drive systems, including variable speed drives and smart motors. This integration will enhance the efficiency and flexibility of mechanical systems.
Toothed belts play a critical role in modern mechanical systems, offering precise power transmission and synchronization. The variety of belt types, from standard timing belts to specialized double Toothed Belts, allows for tailored solutions to meet specific industrial needs. Understanding the differences among these belts is essential for engineers and technicians to select the appropriate belt for their applications, ensuring reliability, efficiency, and longevity of their machinery. As technology advances, we can anticipate further innovations in toothed belt designs and materials, contributing to more efficient and sustainable mechanical systems.
