Toothed belt pulleys, often integral components in modern machinery, play a crucial role in mechanical power transmission systems. These devices, known for their precision and efficiency, synchronize the movement between two shafts without slippage. The combination of toothed belts and pulleys ensures accurate timing and positioning, which is essential in applications ranging from automotive engines to industrial automation. Understanding the mechanics and benefits of toothed belt pulleys is pivotal for engineers and professionals looking to optimize mechanical systems. By integrating high-quality Toothed Belt solutions, industries can achieve superior performance and longevity in their equipment.
At the core of toothed belt pulleys lies the interaction between the toothed belt and the pulley itself. The belt, featuring protruding teeth on its inner surface, meshes seamlessly with the grooves of the pulley. This meshing action prevents slippage, allowing for precise timing and synchronization between connected shafts. The design ensures that rotational motion is transferred smoothly, maintaining consistent speed ratios. This mechanism is particularly vital in engines where timing accuracy is critical to prevent mechanical failures and ensure optimal performance.
A typical toothed belt pulley system comprises several key components:

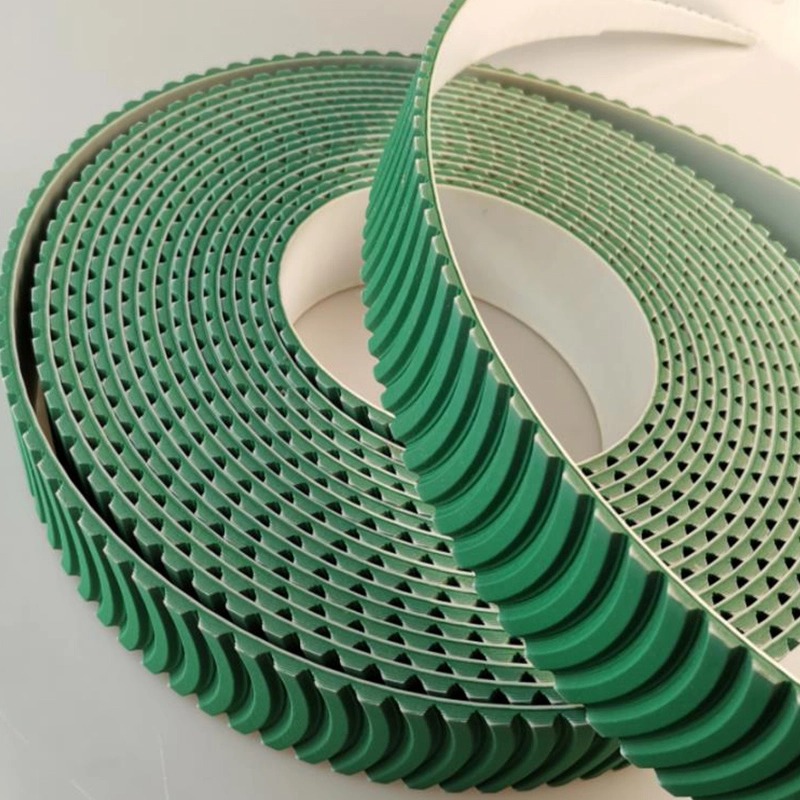

Constructed from durable materials like polyurethane or rubber, the toothed belt features evenly spaced teeth that align with the pulley grooves. Variations in tooth profiles and belt materials cater to different load capacities and environmental conditions.
Pulleys are typically made from metals such as aluminum or steel, offering strength and resistance to wear. The pulley's grooves match the belt's tooth profile, ensuring proper engagement and torque transmission.
A tensioner maintains the appropriate tension in the belt, compensating for any elongation due to wear or thermal expansion. Proper tension is crucial to prevent belt slippage and extend the system's lifespan.
Toothed belt pulley systems are ubiquitous in various industries due to their reliability and precision. In the automotive sector, they are essential for engine timing belts, synchronizing the crankshaft and camshaft movements. In manufacturing, they facilitate accurate positioning in conveyor systems and robotics, enhancing productivity and product quality. The textile industry leverages these systems for precise control of looms and spinning machines. Additionally, they find applications in office equipment like printers and scanners, where exact movements are necessary for functionality.
The popularity of toothed belt pulley systems stems from several inherent advantages:
The positive engagement between the belt and pulley teeth eliminates slippage, ensuring consistent speed ratios and accurate timing essential for complex machinery.
Compared to chain drives, toothed belt pulleys operate with minimal noise, enhancing the working environment and reducing noise pollution.
These systems require less maintenance than their chain counterparts. The absence of metal-to-metal contact reduces wear and the need for lubrication.
Toothed belt pulley systems exhibit high efficiency levels, often exceeding 98%, leading to energy savings and reduced operational costs.
Designing an effective toothed belt pulley system requires careful consideration of several factors:
Understanding the torque and power requirements is essential. Overloading the system can lead to premature failure, while underutilization may result in unnecessary costs.
Factors such as temperature, humidity, and exposure to chemicals influence material selection. For instance, polyurethane belts may perform better in harsh chemical environments compared to rubber belts.
The physical space available can dictate the size of the pulleys and belts. Compact designs may require smaller pulleys, affecting the minimum bend radius of the belt.
The desired speed reduction or multiplication between input and output shafts determines the pulley sizes. Accurate calculations ensure the system meets performance expectations.
The choice of materials for both belts and pulleys significantly impacts the system's performance and durability.
Common belt materials include:
Pulleys are typically made from:
Proper installation and maintenance are crucial for ensuring the longevity and efficient operation of toothed belt pulley systems.
Misalignment can lead to uneven wear and belt damage. It's essential to ensure that pulleys are correctly aligned during installation.
Maintaining the correct belt tension prevents slippage and reduces stress on the belt and bearings. Regular checks and adjustments are recommended.
Periodic inspection for signs of wear, such as fraying or cracking, enables timely belt replacement, preventing unexpected downtime.
Toothed belt pulleys are vital components in a vast array of mechanical systems, offering precision, efficiency, and reliability. By comprehending their operational mechanisms and the factors influencing their performance, industries can optimize their machinery for better productivity and reduced maintenance costs. Selecting the appropriate materials, ensuring proper installation, and adhering to maintenance protocols are essential steps in maximizing the benefits of toothed belt pulley systems. Incorporating high-quality components like the reliable pulley options available can significantly enhance system performance and longevity.
